Marine Aluminium plate

-

1602 items in stock


Aluminium plate products are largely used in the superstructures of marine and offshore engineering, such as ship body structures and bays. In addition, aluminum tubes with small diameter can be used as vessels, and larger tubes and rods can be masts

More Details

Product Information

 Aluminium plate products are largely used in the superstructures of marine and offshore engineering, such as ship body structures and bays. In addition, aluminum tubes with small diameter can be used as vessels, and larger tubes and rods can be masts and beam-columns etc. Sometimes, some profiles with small wall thickness are used in hull structures for the purpose of lightening as well.

The Aluminium plate products from haomei aluminum possess high strength, good processability and corrosion resistance, and completely meet the requirements of marine applications. Via the cooperation with international and domestic experts, haomei aluminum masters the state-of-the-art production technologies of Aluminium plate and profiles for marine, and is able to provide prospective supports for marine and offshore industries.

haomei aluminium are capable of providing various aluminum alloy products for shipping and offshore engineering, which are mainly applied in LNG tank, ferry, yacht, patrol boat, the superstructure and lifting platform for other large vessels, and the drilling platform etc.

Classic alloy:  5052、5754、5154、5086、5083、5383, 6005A、6082.

Product character: Superior corrosion resistance, good weldability, high fatigue resistance.



Specifications
Alloys (AA) Temper Thickness range (mm) Length range (mm) Width range (mm)
5052、5754、5154、5086、5083、5383, 6005A、6082

F and O
H111, H112, T4, T6 (For 6061, 6063), T651(Stretched plate)
6 —   300 1000 — 10000 500 — 2700



Stretched Aluminum plate
Thickness limit 6 — 70 mm
Length limit 2000 — 10000 mm



Chemical composition
Alloy (%) 5052 5083 5086 5754 6005A 6082
Si 0.25 0.40 0.40 0.40 0.50— 0.9 0.7~1.3
Fe 0.40 0.40 0.50 0.40 0.35 0.50
Cu 0.10 0.10 0.10 0.10 0.30 0.10
Mn 0.10 0.40— 1.0 0.20— 0.7 0.50 0.50 0.40~1.0
Mg 2.2— 2.8 4.0— 4.9 3.5— 4.5 2.6— 3.6 0.40~0.7 0.6~1.2
Cr 0.15— 0.35 0.05— 0.25 0.05— 0.25 0.30 0.30 0.25
Ni
Zn 0.10 0.25 0.25 0.20 0.20 0.20
Ti 0.15 0.15 0.15 0.10 0.10
Each (Others) 0.05 0.05 0.05 0.05 0.05 0.05
Total (Others) 0.15 0.10 0.10 0.15 0.15 0.15
Al Remaining Remaining Remaining Remaining Remaining Remaining
Single number indicates maximum content.



Packing
Aluminium plate : Aluminum Plates are placed in wooden boxes on wooden skids with runners along the length of the sheet. They are wrapped in HDPE with hardboard on top and bottom of the stack. Hoop iron strapping runs along the length of the sheets. Silica gel packets are put in the boxes for moisture protection. (Aluminium plate)
Tag

Marine Aluminium plate,Marine Aluminium,Aluminium plate



5052 Aluminum Alloy Hot Rolled Precision Sheet

5052 Aluminum Alloy Hot Rolled Precision Sheet


New | aluminium alloy plate

5052 Aluminum Alloy Hot Rolled Precision Sheet, Find details about Aluminum Plate, Aluminum Sheet from 5052 Aluminum Alloy Hot Rolled Precision Sheet .cnc alu...

View Details

$0.00



8011 H14 Aluminum Sheet for PP Caps

8011 H14 Aluminum Sheet for PP Caps


New | aluminium alloy plate

8011 H14 Aluminum Sheet for PP Caps, Find details about Al sheet, Al Sheet for Caps from 8011 H14 Aluminum Sheet for PP Caps .where to buy aluminum

View Details

$0.00



Supply 3mm Thick Mill Finish Alloy 1050 1060 1070 1100 Aluminum Sheet Price

Supply 3mm Thick Mill Finish Alloy 1050 1060 1070 1100 Aluminum Sheet Price


New | aluminium alloy plate

Supply 3mm Thick Mill Finish Alloy 1050 1060 1070 1100 Aluminum Sheet Price, Find details about 3mm Thick Mill Finish, Alloy 1050 1060 1070 1100 Aluminum Shee...

View Details

$0.00



Color Coated Prepainted Aluminum Coil Sheet Price Supplier

Color Coated Prepainted Aluminum Coil Sheet Price Supplier


New | aluminium alloy plate

Color Coated Prepainted Aluminum Coil Sheet Price Supplier, Find details about Aluminium Extrusion, Building Material from Color Coated Prepainted Aluminum Co...

View Details

$0.00

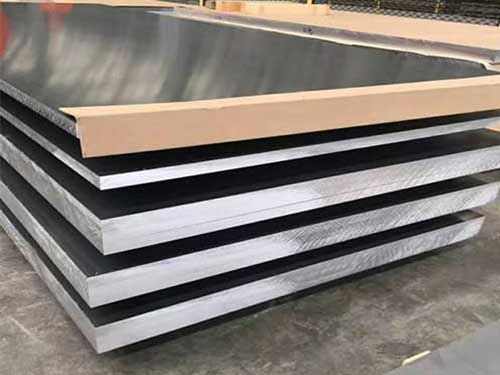

Good quality Hot Rolled Aluminum sheet for roofing

Good quality Hot Rolled Aluminum sheet for roofing


New | aluminium alloy plate

Good quality Hot Rolled Aluminum sheet for roofing, Find details about Aluminum Sheet for Marine, 6061 Aluminum Sheet from Good quality Hot Rolled Aluminum sh...

View Details

$0.00

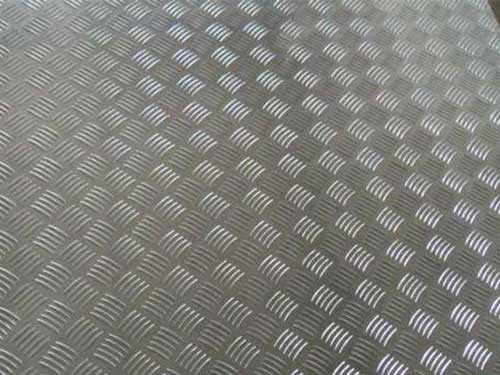

diamond aluminium sheet
